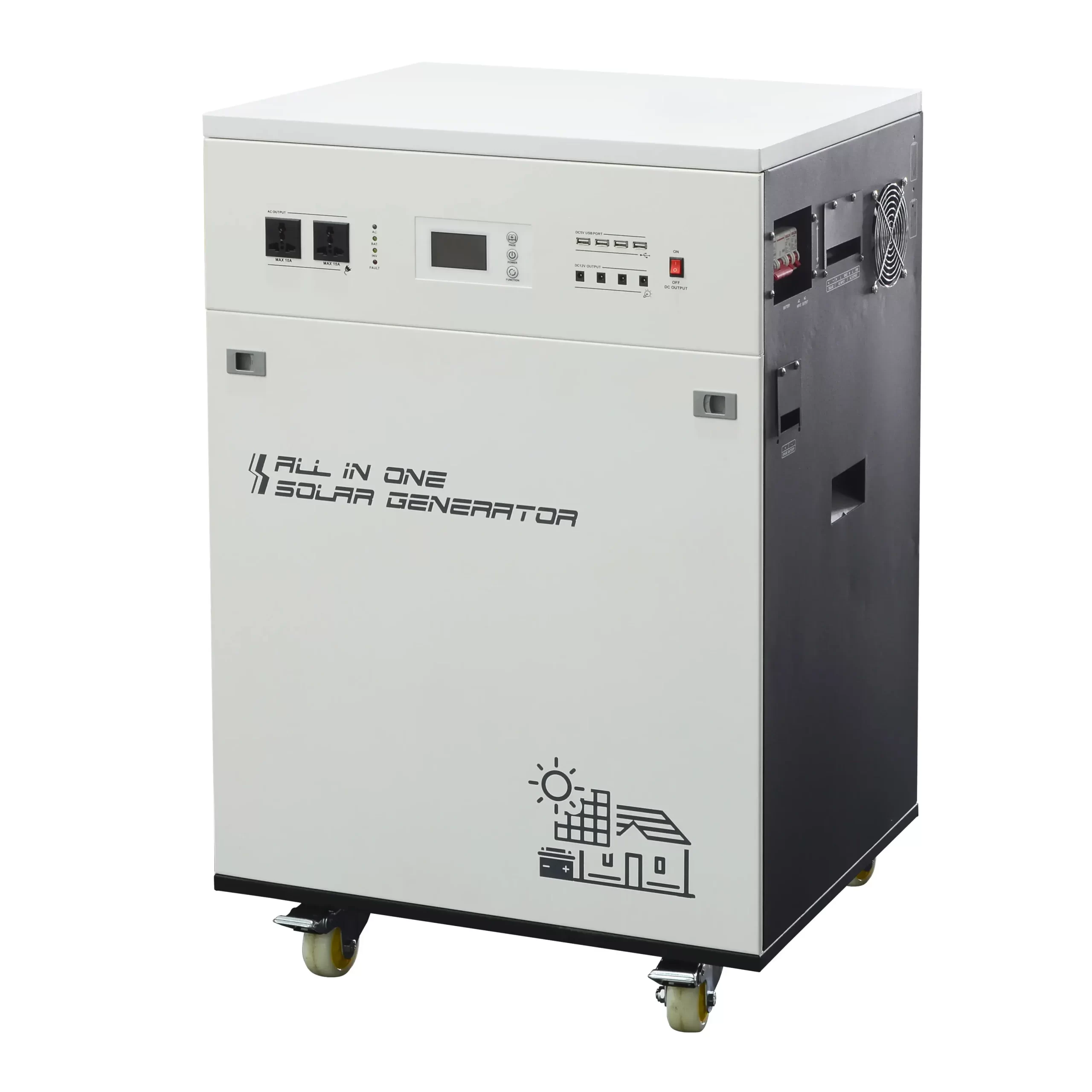

ESS1500W-7000W(4x200Ah)

Rated Power: 1500W/2000W/3000W/4000W/5000W/6000W/7000W, Input: DC48V, Ouput: AC110V/120V/220V/230V/240V, 2*AC Output Socket, 4*DC12V, 4*DC5V USB | Solar Panel Generator Combines Inverter, MPPT Solar Charge Controller, Can Built-in 4*200AH Battery

Type : Off Grid Solar Panel Generator
Place of Origin : Foshan, Guangdong, China
Brand : STELL
MOQ : 1 pcs
OEM : Yes

Submit request

    

ESS Portable Solar Panel Generator for Home 1500W-7000W 48V

■ Solar Panel Generator Feature

3 times peak power, excellent loading capability.
Solar panel generator combines inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Digital LCD and LED for visualization of operation status of the equipment.
0. Solar panel generator inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.

■ Solar Panel Generator Specification

Specification
Model : ESS		152P8/W8	202P8/W8	302P8/W8	402P/W	502P/W	602P/W	702P/W
Capacity	Rated power	1500W	2000W	3000W	4000W	5000W	6000W	7000W
	Peak power（20ms）	4500VA	6000VA	9000VA	12KVA	15KVA	18KVA	21KVA
Input	Stardard battery voltage	48VDC
	AC input voltage range	85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
	AC input frequency range	45Hz~55Hz（50Hz);55Hz~65Hz（60Hz)
Output	Conversion efficiency	≥85%(Battery mode); >99%(AC mode)
	AC Output voltage	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
	AC Output frequency	50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
	AC Output waveform	Pure Sine Wave
	THD	≤3%（Linear load)
	DC Output voltage	4DC 12V; 4USB（5V）
AC charger	AC charging current	0~30A(Depends on model)
	AC charging method	Three-stage(constant current, constant voltage, floating charge)
solar charger （Optional）	Charging mode	PWM/MPPT
	Max PV input voltage(Voc) (At the lowest temperature)	PWM: 100V; MPPT: 150V
	PV input voltage range	PWM: 60V-88V; MPPT: 60V-120V
	Charge & discharge current	60A
	Max PV input power	3360W

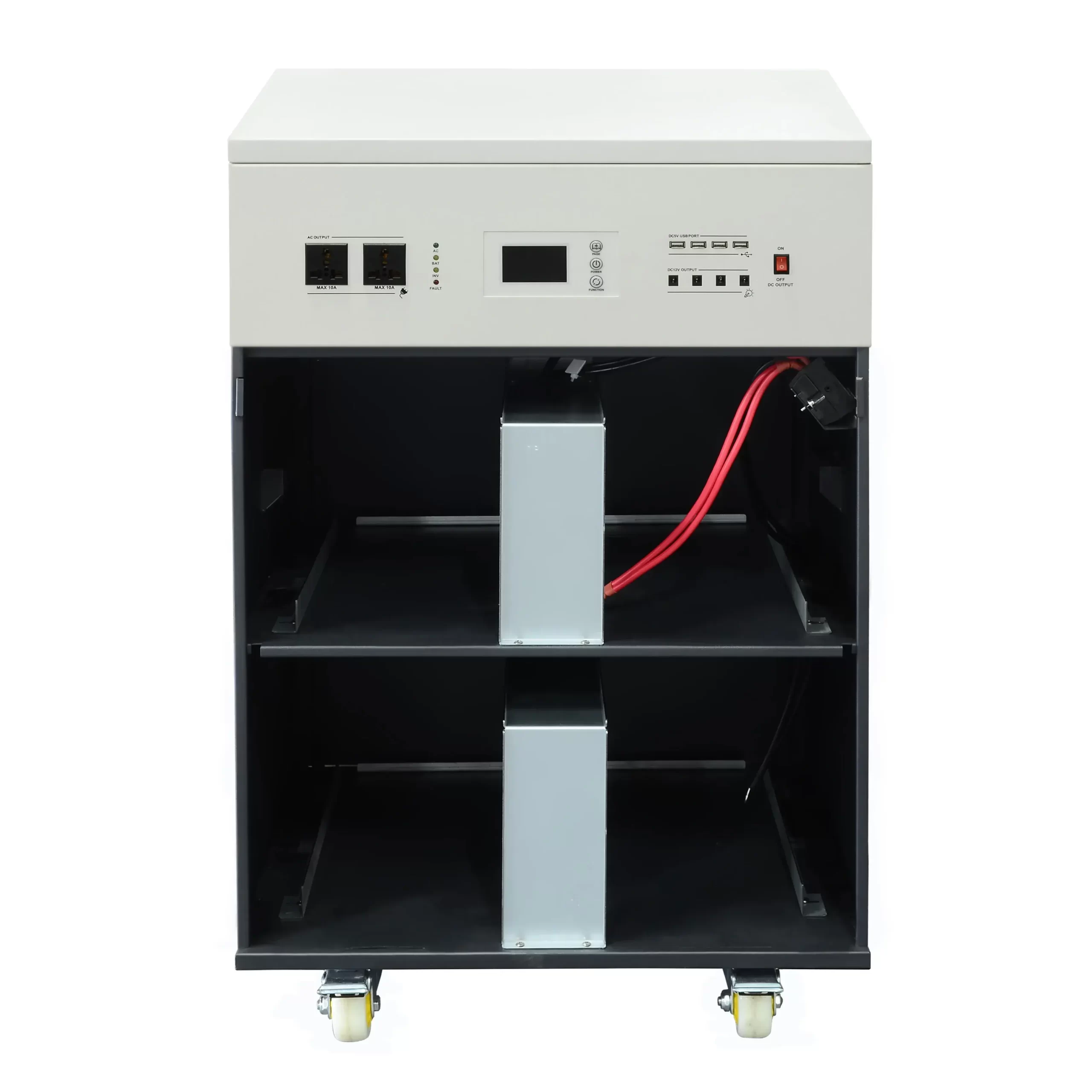

Inbuilt battery	Capacity	4*200AH
	Battery size(LxWxH)/pcs	522240218（244）
Other	Transfer time	≤4ms
	Protection	with over-voltage, low-voltage, overload, short circuit, high tempreature protections
	Display	LCD & LED
	Cooling way	Cooling fan in intelligent control
	Communication(Optional)	RS485/APP（WIFI monitoring or GPRS monitoring）
Working mode (selectable)	d1	AC priority mode
	d2	ECO mode
	d3	Solar priority mode
Work environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Physical	Dimention L x W x H(mm)	610535960
	Net weight(kg)(without battery)	53	55	59	60.5	62	64	66
Packing	Dimention L x W x H(mm)	6886121093
	Gross weight(kg)(without battery)	88	90	94	95.5	97	99	101
	Quantity/CTN	1pcs per wooden case
Note: All specifications are subject to charge without prior notice
