Mono solar panel (also called mono solar cell) for sale. 320W ~ 380W, 425W ~ 455W, 570W ~ 590W. Original manufacturer, primary sources, Zamdon provides mono solar panel at low price and good quality.

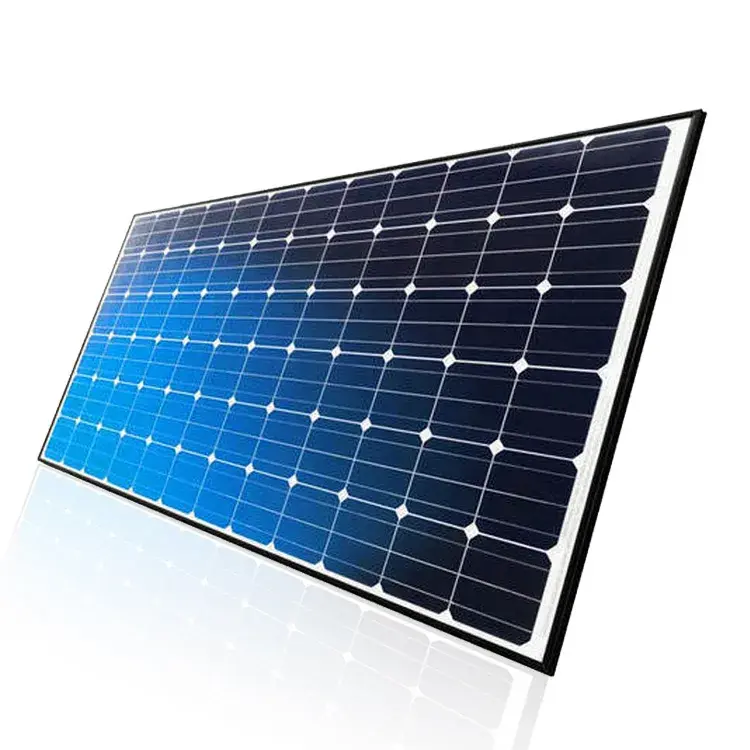

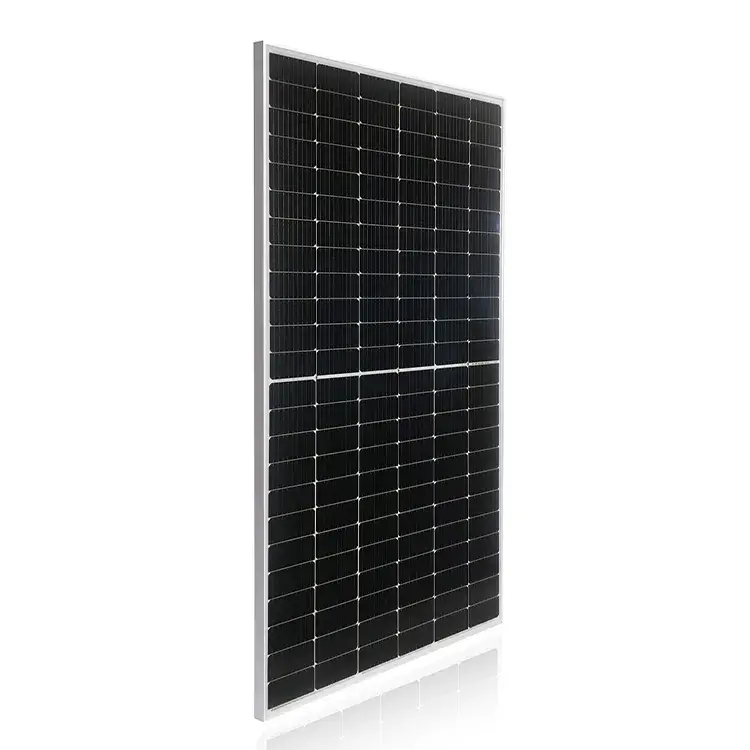

■ What is Mono Solar Panel?
1 All kinds of solar panels have the same purpose: converting sunlight into electricity. Mono solar panels also called as "monocrystalline solar panels". Each solar panel is made of a single silicon crystal. Mono solar panels are characterized by their black solar cells with rounded edges.
2 Mono solar panels are best for areas where space is limited since they produce more electricity on a smaller scale than poly panels. Mono solar panels can draw out the maximum amount of energy even in areas of lower sunlight. So, they are ideal when the goal is efficiency more than cost.
3 Mono solar panels tend to have better heat tolerance than poly solar panels. So, they are a good choice for areas of extreme heat, such as desert environments.
4 Suitable for areas with less sunlight and smaller applications.
5 Mono solar panels are more efficient, mono solar panels price is more expensive, but also provide a better return on investment.
■ Mono Solar Panel Specification
| High Efficiency 72Cells Monocrystalline Solar Panel Models | |||||||
| Model type | GZD320-72 | GP-ZD330-72 | GP-ZD340-72 | GP-ZD350-72 | GP-ZD360-72 | GP-ZD370-72 | GP-ZD380-72 |
| Peak power (Pmax) | 320W | 330W | 340W | 350W | 360W | 370W | 380W |
| Cell Efficiency | 18.26% | 18.83% | 19.40% | 19.97% | 20.54% | 21.12% | 21.86% |
| Maximum power voltage (Vmp) | 36.16V | 36.56V | 36.96V | 37.36V | 37.76V | 38.16V | 38.56V |
| Maximum power current (Imp) | 8.84A | 9.02A | 9.19A | 9.36A | 9.53A | 9.69A | 9.85A |
| Open circuit voltage (Voc) | 43.39V | 43.87V | 44.35V | 44.83V | 45.31V | 45.79V | 46.27V |
| Short circuit current (lsc) | 9.45A | 9.65A | 9.83A | 10.01A | 10.19A | 10.36A | 10.53A |
| Power Tolerance | ±3% | ||||||
| Maximum system voltage | 1000VDC | ||||||
| Maximum Series fuse rating (A) | 15A | ||||||
| High Efficiency Half-cut Monocrystalline Solar Panel Models | |||||||
| Model type | GP-ZD425 | GP-ZD430 | GP-ZD435 | GP-ZD440 | GP-ZD445 | GP-ZD450 | GP-ZD455 |
| Peak power (Pmax) | 425W | 430W | 435W | 440W | 445W | 450W | 455W |
| Cell Efficiency | 19.20% | 19.50% | 19.70% | 19.90% | 20.10% | 20.40% | 20.60% |
| Maximum power voltage (Vmp) | 40.8 | 41.1 | 41.3 | 41.5 | 41.7 | 42 | 42.2 |
| Maximum power current (Imp) | 10.42 | 10.47 | 10.54 | 10.61 | 10.68 | 10.73 | 10.79 |
| Open circuit voltage (Voc) | 4802 | 48.4 | 48.6 | 48.8 | 49 | 49.2 | 49.4 |
| Short circuit current (lsc) | 11.12 | 11.17 | 11.22 | 11.27 | 11.32 | 11.37 | 11.42 |
| Power Tolerance | ±5W | ||||||
| Maximum system voltage | 1000VDC | ||||||
| Maximum Series fuse rating (A) | 15A | ||||||
| High Efficiency Half-cut Monocrystalline Solar Panel Models | |||||
| Model type | GP-ZD570 | GP-ZD575 | GP-ZD580 | GP-ZD585 | GP-ZD590 |
| Peak power (Pmax) | 570W | 575W | 580W | 585W | 590W |
| Cell Efficiency | 20.50% | 20.70% | 20.90% | 21.10% | 21.20% |
| Maximum power voltage (Vmp) | 35.5 | 35.7 | 35.9 | 36.1 | 36.3 |
| Maximum power current (Imp) | 16.06 | 16.11 | 16.16 | 16.21 | 16.25 |
| Open circuit voltage (Voc) | 42.5 | 42.7 | 42.9 | 43.1 | 43.3 |
| Short circuit current (lsc) | 17.1 | 17.14 | 17.18 | 17.21 | 17.25 |
| Power Tolerance | 20.9 | ||||
| Maximum system voltage | 1000VDC | ||||
| Maximum Series fuse rating (A) | 15A | ||||

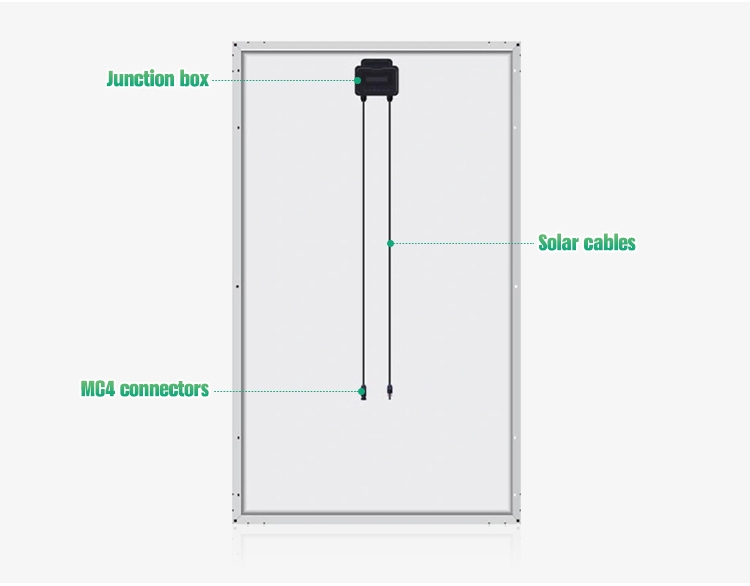

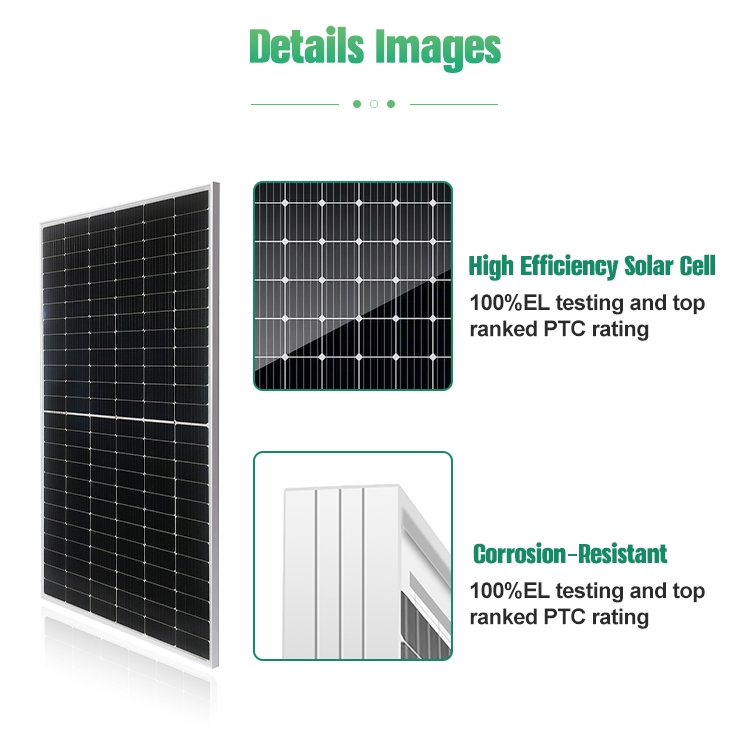

■ Mono Solar Panel Details
■ Mono Solar Panel Multiple Successful Testing
Power and tolerance
0~+3w positive power tolearance guarantee
Resistance to the PID
Harsh conditions for 96 hours testing qualified (@85℃/85%）.For special severity installation environment, can meet higher standards
Stonger surface resistance to mechanical loads
Mono panel has passed the certification of 6000pa snow load and 3600pa wind load
High reliability and weather resistance
Through dust,salt fog,ammonia corrosion test,can effectively deal with the harsh environment.
The hail test
Mono panel passed the hail test with a diameter
Lower temperature coefficient
Better temperature coefficient makes the power attenusation less at high temperature
