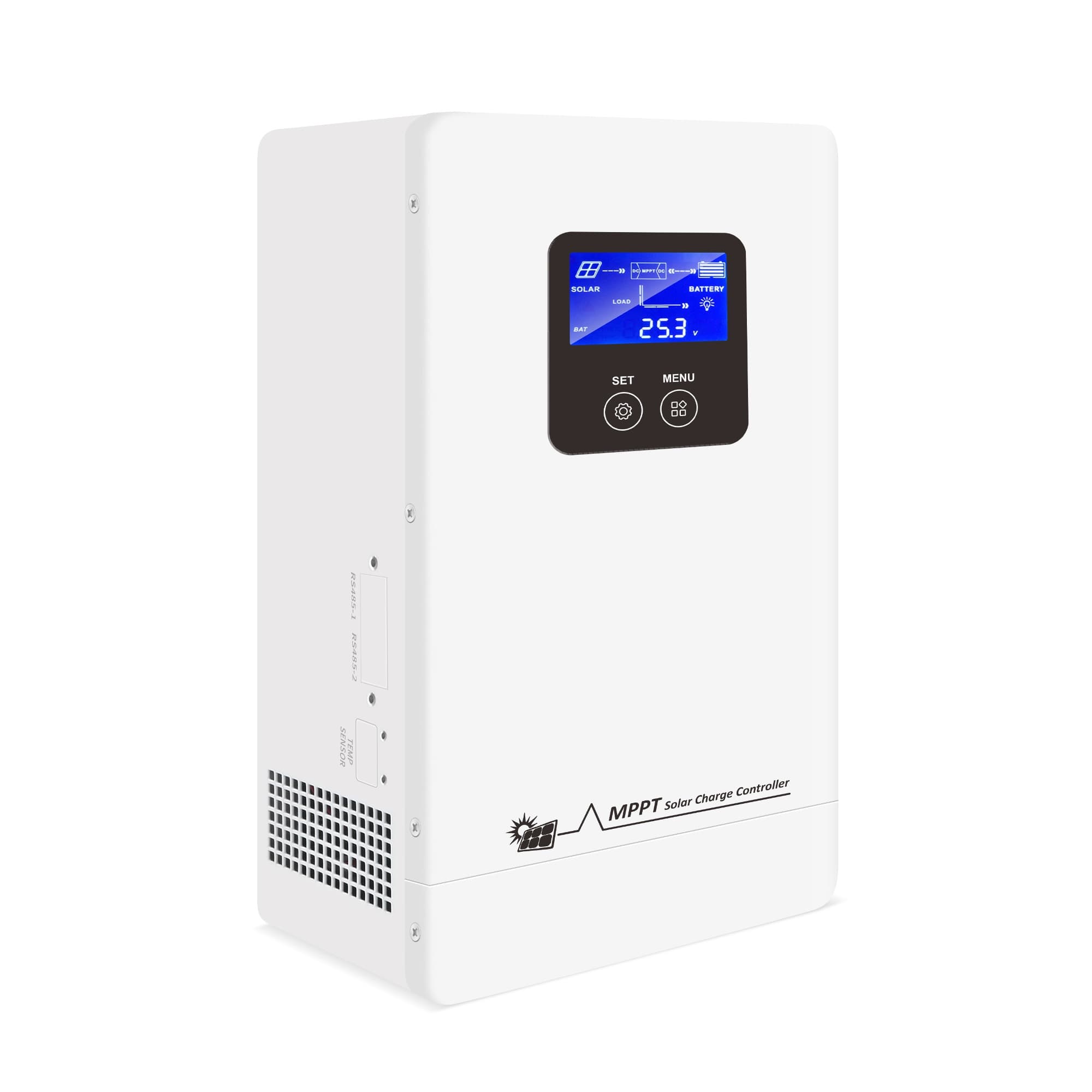

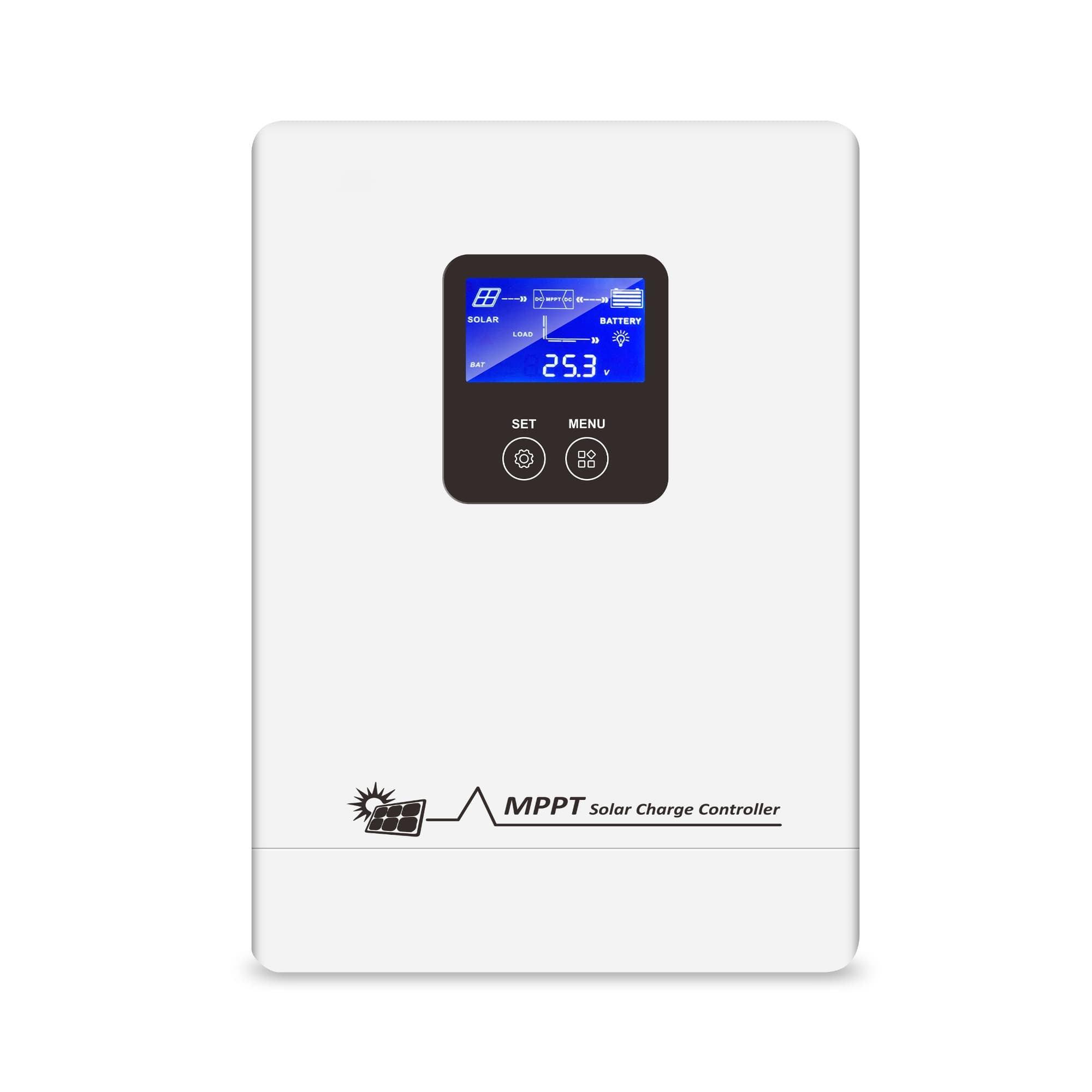

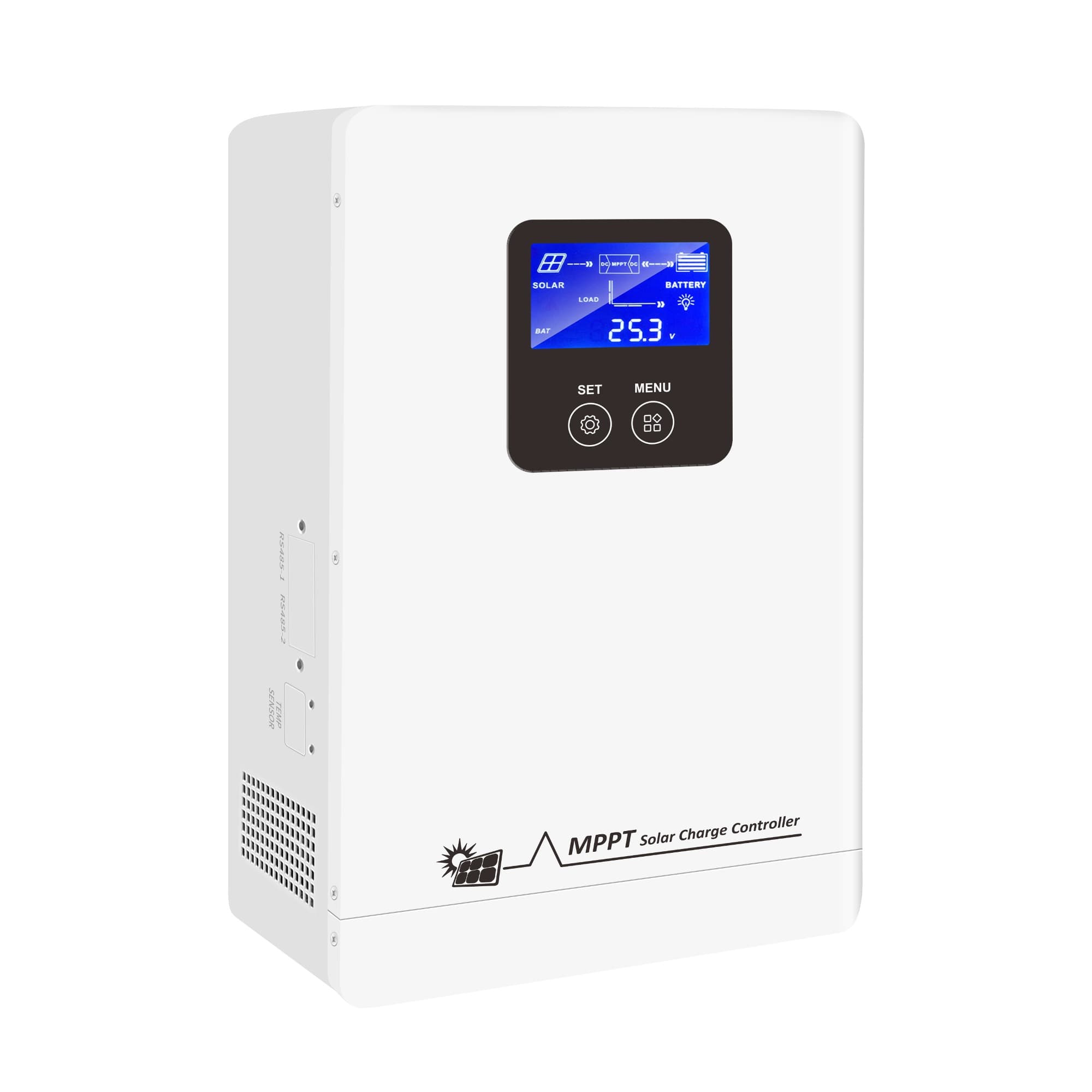

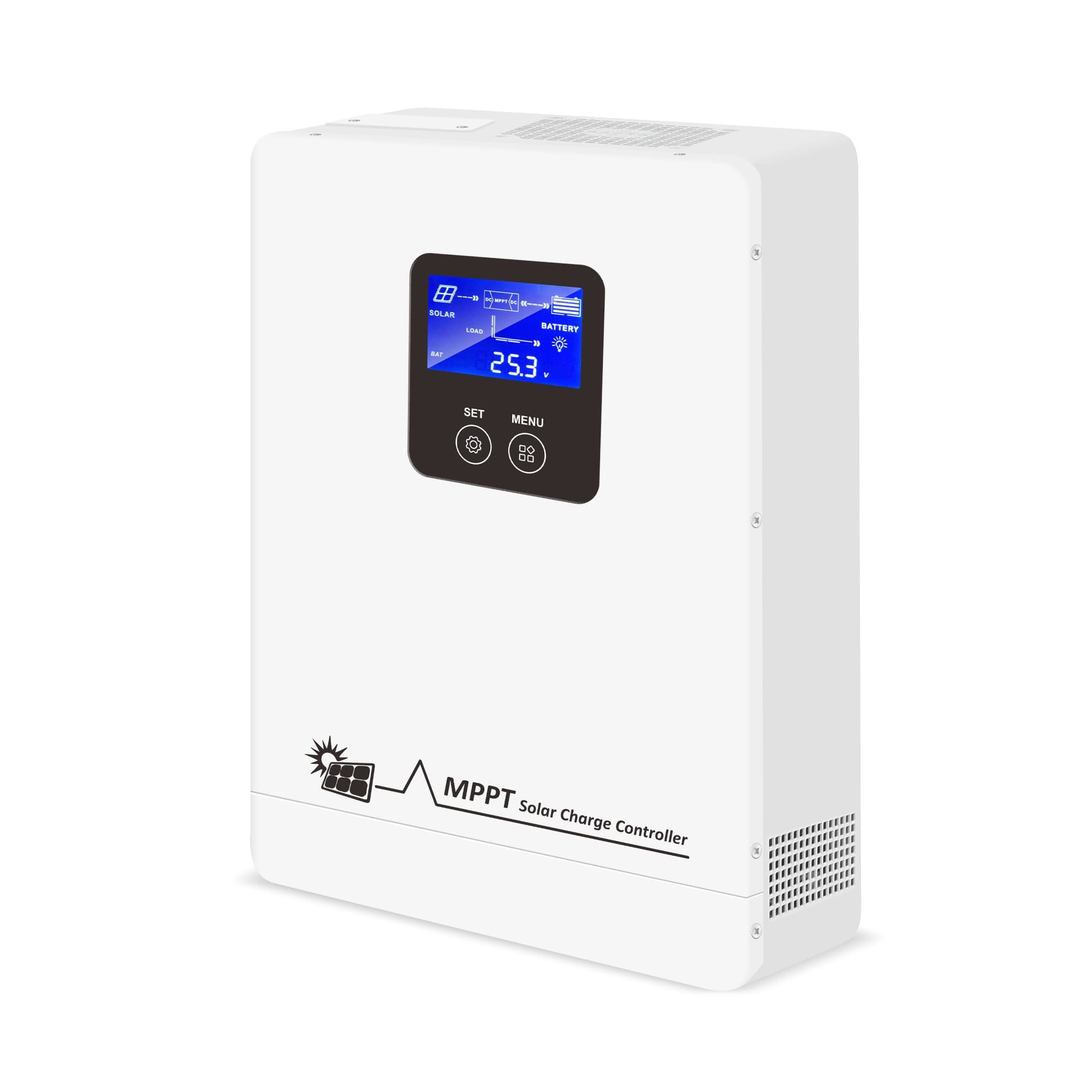

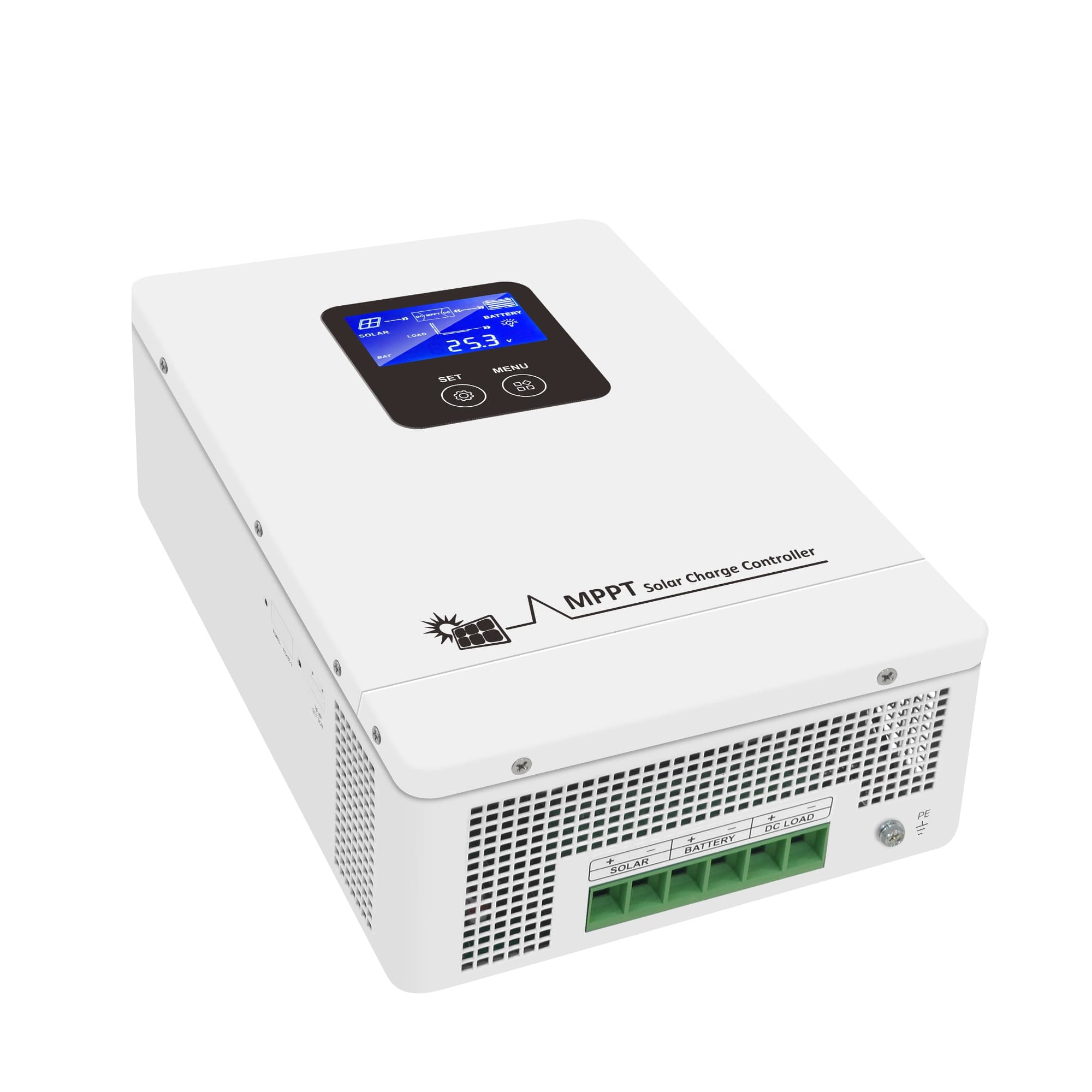

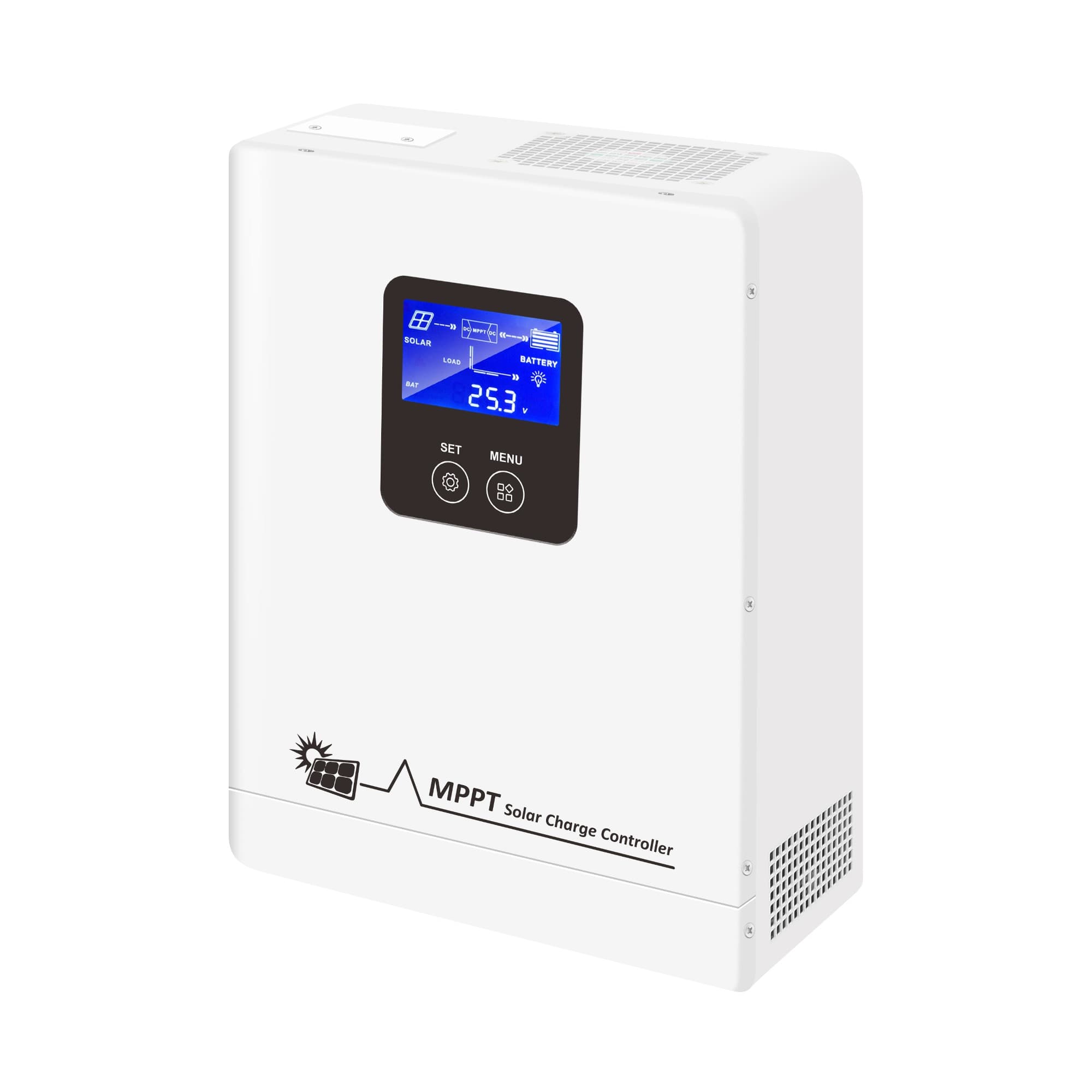

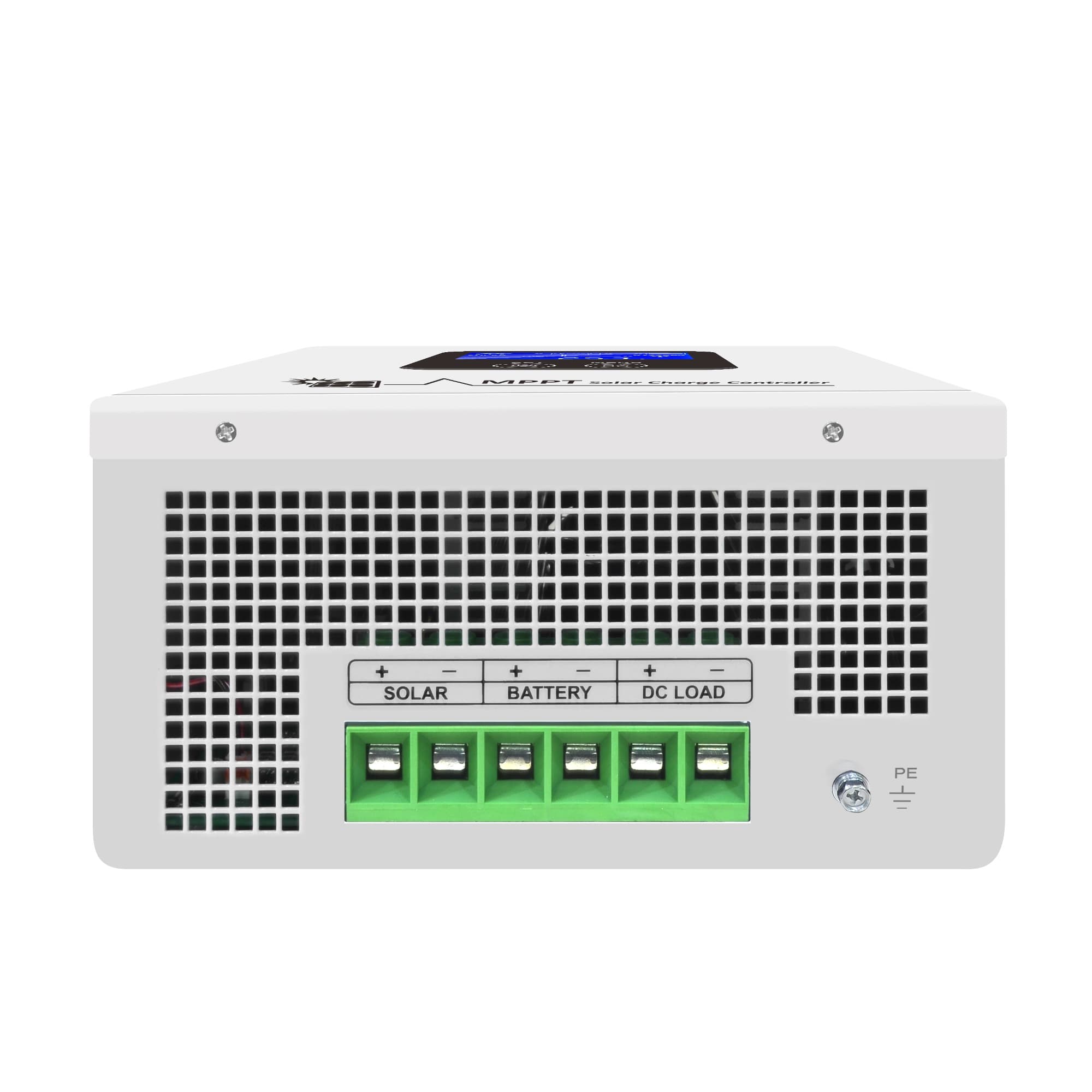

| Model:Wonder3 | 8048 | 10048 |
| Current/Voltage | ||
| Rated Curent | 80A | 100A |
| Rated System Voltage | 36V/48V | |
| PVInput | ||
| Max PV Input Voltage(Voc)
(At The Lowest Temperature) |
300V | |
| MPPT Tacking volage Range | 36Vsystem:45V-250V;48V system:60V-250V | |
| PV arey Max power | 36Vsystem;3360W(80A)4200W(100A);48Vsystem:4480W(80A)/5600W(100A) | |
| MPPT Tracking Channels | 1 | |
| PV Input Routed | 1 | |
| Battery | ||
| Type | Lead acid batteryLithium battery/Custom bttery | |
| Floaing Voltage | 13.8V/single(Lead aid attery) | |
| Charge Votage | 14.2V/single(Lea acid bttery) | |
| Charging Protection voltage | 15.5V/singleLead acid bttery) | |
| Protection | o | |
| Communication | RS485APP(WIFI monitoring or GPRS monitoring) | |
| ActivateLIthum BateyFunction | Can automaticallyactivate ithium bateries | |
| Other | ||
| MPPTEfciency | 99% | |
| Display | LCD | |
| Type Of Mechanical Potection | IP20 | |
| ThermalMethod | Cooling fan in ineligent control | |
| Operating Temperature | -15℃~+50℃ | |
| Elevation | 2000m(more than derating) | |
| Humidity | 5%-95%(No condensation) | |
| Dimensions and Weight | ||
| Machine Size(L-WHmm) | 265-200*107 | |
| Package Size(L-WHmm) | 310*245*159(1pe)/505*320*340(4pc) | |
| N.W. (Kkg) | 3.5(1pe) | |
| G.W. (ks) | 4(1PC) | |
