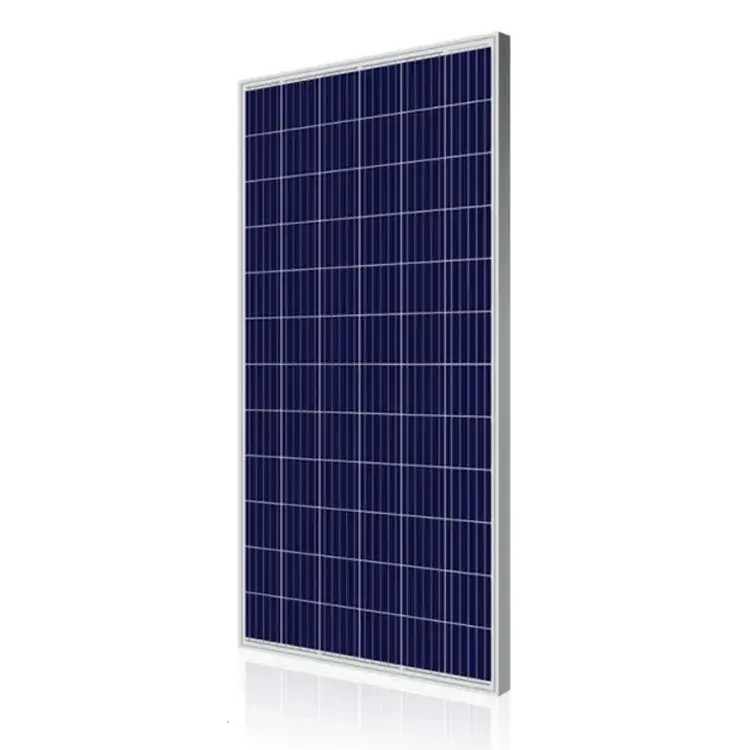

Poly solar panel (also called polycrystalline solar cells) for sale. 250W ~ 280W, 300W ~ 350W, 420W ~ 460W or customed. Factory price, poly solar panels are ideal for home solar power system.
What is Poly Solar Panel?
1 All kinds of solar panels have the same purpose: converting sunlight into electricity. Each solar cell is made of multiple silicon crystal fragments that are melded together during manufacturing, also called "multi-crystalline panels" or "polycrystalline cells". Poly solar panel has a lower price and very durable.
2 Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies;
3 High quality,strong aluminium frame, high-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon;
4 Poly solar panel has passed TUV, IEC61215, IEC61730, CE, PV CYCLE, ISO 9001:2008,ISO 14001:2004 and OHSAS18001.
■ Poly Solar Panel Specification
| Polycrystalline Solar Cells Module | ||||
| Power Range 250W~280W, 60 cells | ||||
| Model | ZD-P250 | ZD-P260 | ZD-P270 | ZD-P280 |
| Maximum Power/Pmax(Wp) | 250W | 260W | 270W | 280W |
| Optimum Operating Voltage/Vmp(V) | 30.00 | 30.12 | 30.20 | 30.50 |
| Optimum Operating Current/Imp(A) | 8.33 | 8.63 | 8.90 | 9.20 |
| Open Circuit Voltage/Voc(V) | 36.00 | 36.14 | 36.20 | 36.60 |
| Short Circuit Current/Isc(A) | 8.70 | 9.23 | 9.40 | 9.70 |
| Cell Eiciency | 17.12% | 17.80% | 18.49% | 19.18% |
| Module Efficiency(%) | 15.30% | 15.91% | 16.53% | 17.14% |
| Power Tolerance | 0~+3W | |||
| Maximum Series Fuse Rating(A) | 15A | |||
| Maximum System Voltage | 1000VDC | |||
| Maximum Data | ||||
| Operating Module Temperature | -40℃ to +80℃ | |||
| Storage Temperature | From -40℃ to +80℃ | |||
| Insulation Cut Voltage | 1000 DC | |||
| Maximum Wind Resistance | 60m/s N/m² or max KM/h | |||
| Surface Maximum Load Capacity | 200 Kg/㎡ | |||
| Maximum Hail Load Capacity | 5mm 80km/h | |||
| Polycrystalline Solar Cells Module | |||||||
| Power Range 300W~350W,72 cells | |||||||
| Model | ZD-P300 | ZD-P310 | ZD-P320 | ZD-P330 | ZD-P335 | ZD-P340 | ZD-P350 |
| Maximum Power/Pmax(Wp) | 300W | 310W | 320W | 330W | 335W | 340W | 350W |
| Optimum Operating Voltage/Vmp(V) | 36.00 | 36.00 | 36.00 | 36.00 | 36.00 | 36.30 | 36.50 |
| Optimum Operating Current/Imp(A) | 8.30 | 8.60 | 8.90 | 9.10 | 9.20 | 9.37 | 9.59 |
| Open Circuit Voltage/Voc(V) | 43.20 | 43.20 | 43.20 | 43.40 | 43.50 | 43.56 | 43.80 |
| Short Circuit Current/Isc(A) | 8.70 | 9.00 | 9.30 | 9.50 | 9.65 | 9.84 | 9.98 |
| Cell Eiciency | 17.12% | 17.69% | 18.26% | 18.83% | 19.10% | 19.40% | 19.97% |
| Module Efficiency(%) | 15.54% | 16.06% | 16.58% | 17.09% | 17.32% | 17.61% | 18.13% |
| Power Tolerance | 0~+3W | ||||||
| Maximum Series Fuse Rating(A) | 15A | ||||||
| Maximum System Voltage | 1000VDC | ||||||
| Maximum Data | |||||||
| Operating Module Temperature | -40℃ to +80℃ | ||||||
| Storage Temperature | From -40℃ to +80℃ | ||||||
| Insulation Cut Voltage | 1000 DC | ||||||
| Maximum Wind Resistance | 60m/s N/m² or max KM/h | ||||||
| Surface Maximum Load Capacity | 200 Kg/㎡ | ||||||
| Maximum Hail Load Capacity | 5mm 80km/h | ||||||
| Polycrystalline Solar Cells Module | |||||
| Power Range 420W, 96 Cells | |||||
| MODEL | ZD-P420 | ZD-P430 | ZD-P440 | ZD-P450 | ZD-P460 |
| Maximum Power/Pmax(Wp) | 420W | 430W | 440W | 450W | 460W |
| Optimum Operating Voltage/Vmp(V) | 48.50 | 48.80 | 49.10 | 49.40 | 49.70 |
| Optimum Operating Current/Imp(A) | 8.66 | 8.82 | 8.97 | 9.11 | 9.26 |
| Open Circuit Voltage/Voc(V) | 60.10 | 60.40 | 60.70 | 60.90 | 61.20 |
| Short Circuit Current/Isc(A) | 9.08 | 9.22 | 9.35 | 9.50 | 9.64 |
| Cell Eiciency | 18.26% | 18.83% | 19.10% | 19.40% | 19.97% |
| Module Efficiency(%) | 16.58% | 17.09% | 17.32% | 17.61% | 18.13% |
| Power Tolerance | 0~+3W | ||||
| Maximum Series Fuse Rating(A) | 15A | ||||
| Maximum System Voltage | 1000/1500VDC | ||||
| Maximum Data | |||||
| Operating Module Temperature | -40℃ to +85℃ | ||||
| Storage Temperature | From -40℃ to +80℃ | ||||
| Insulation Cut Voltage | 1000 DC | ||||
| Maximum Wind Resistance | 60m/s N/m² or max KM/h | ||||
| Surface Maximum Load Capacity | 200 Kg/㎡ | ||||
| Maximum Hail Load Capacity | 5mm 80km/h | ||||

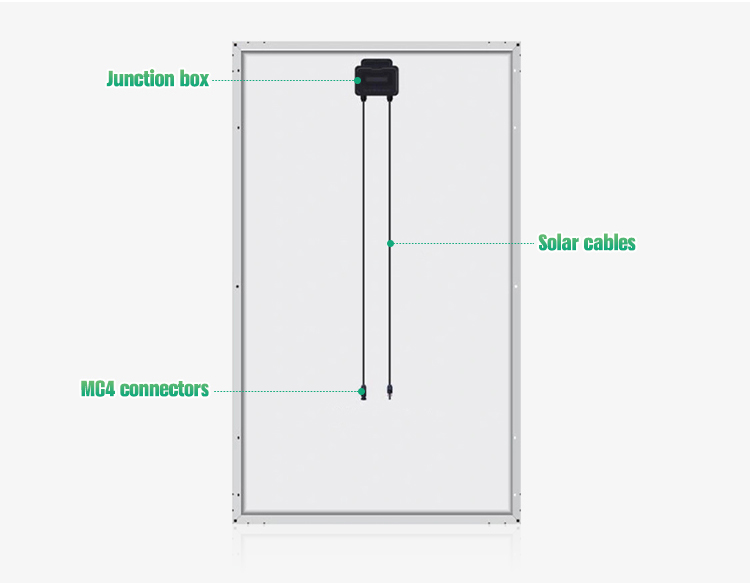

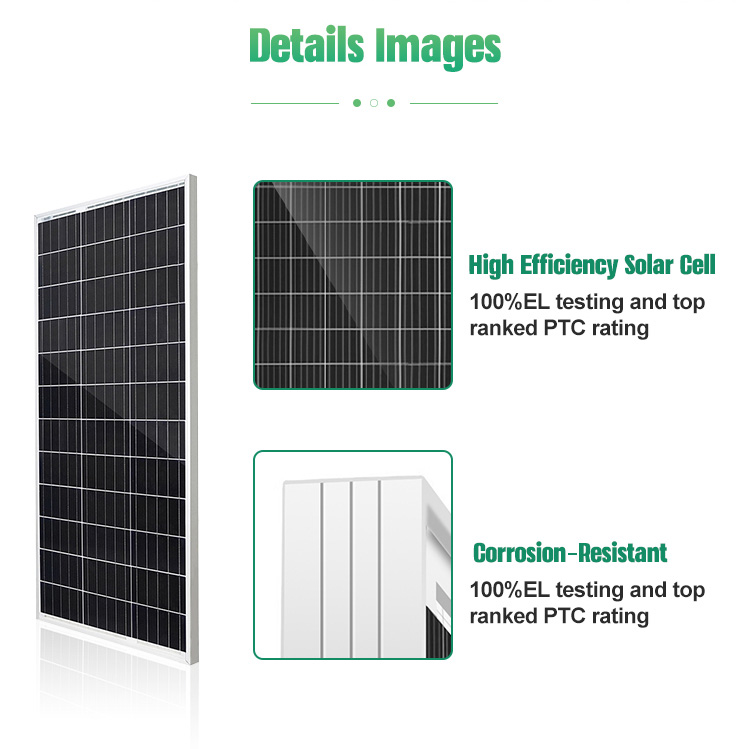

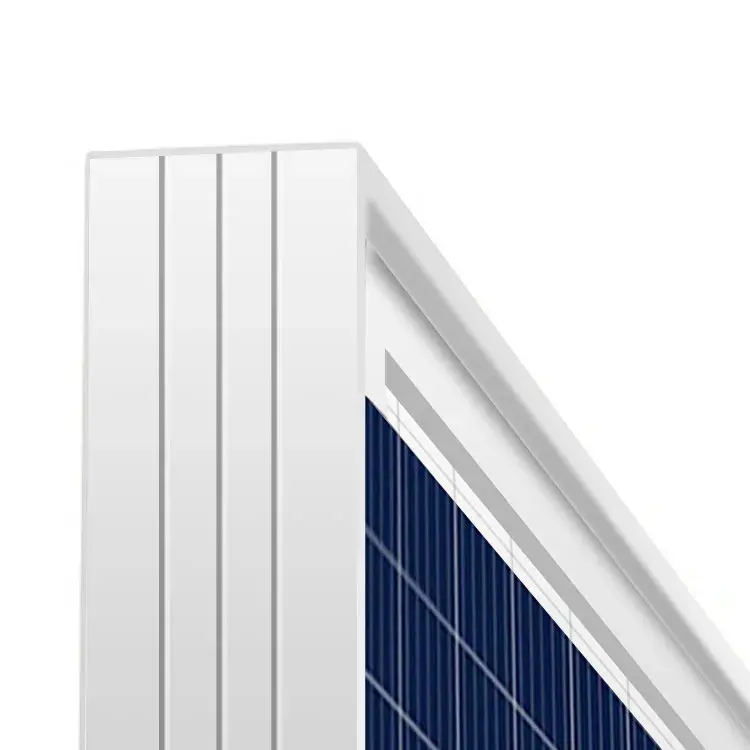

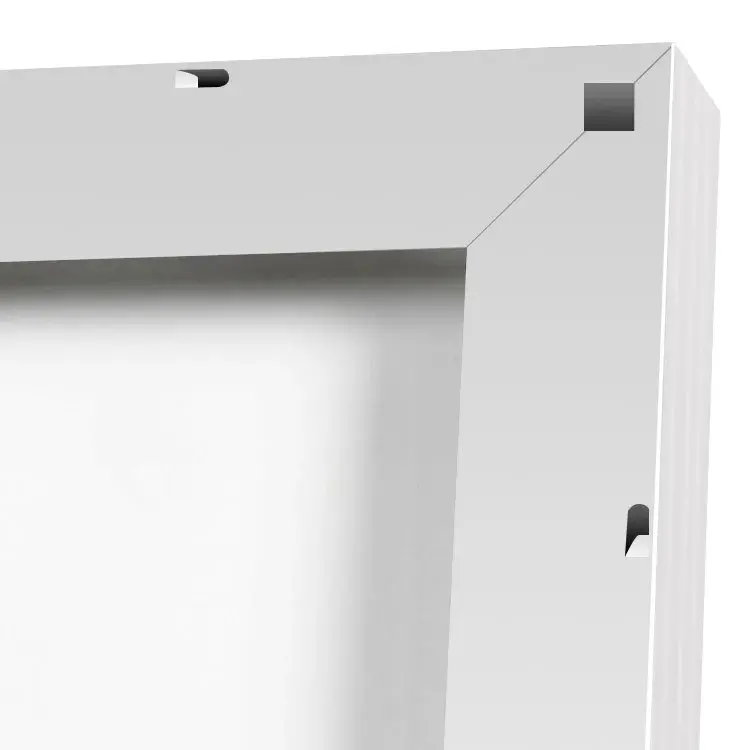

■ Poly Solar Panel Details
