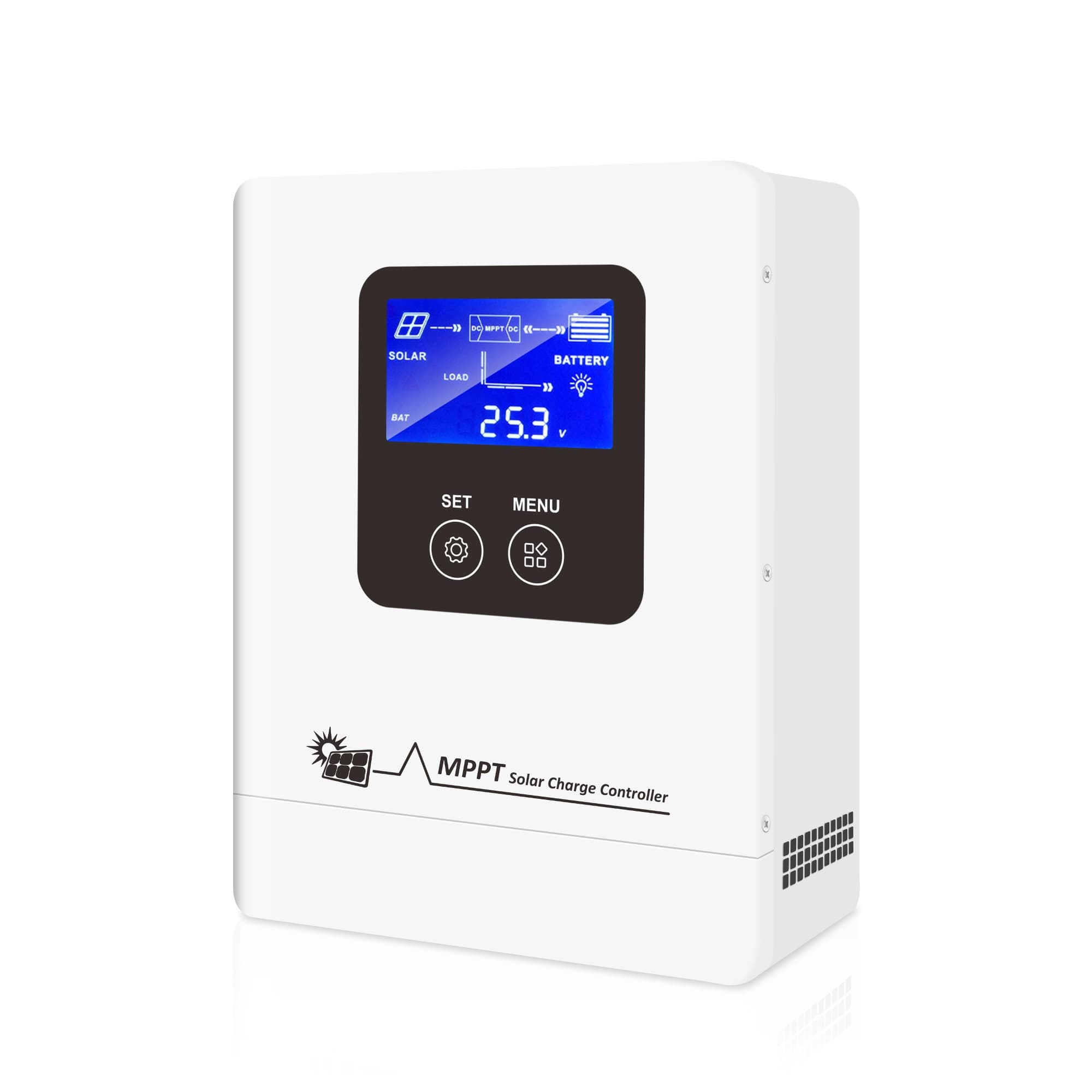

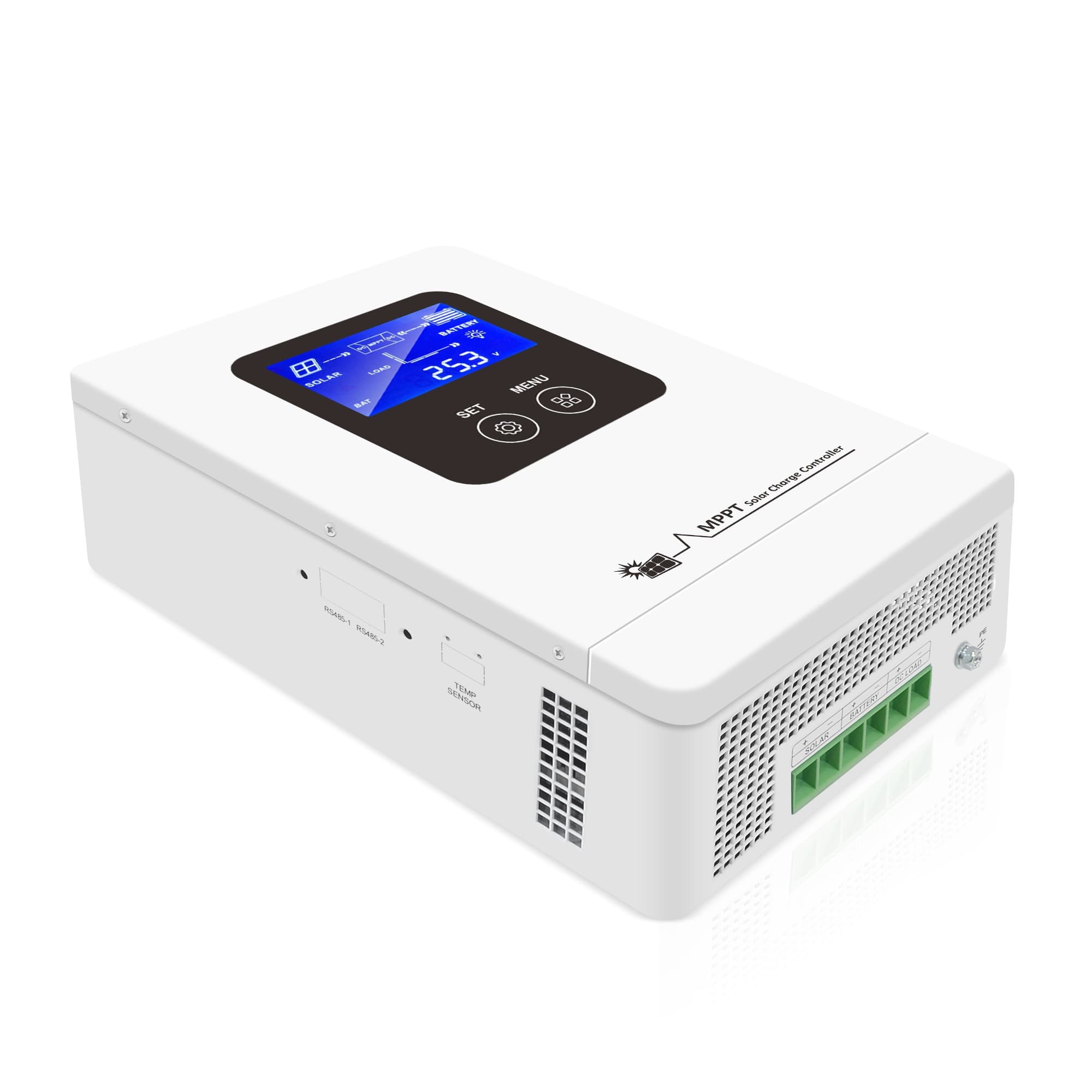

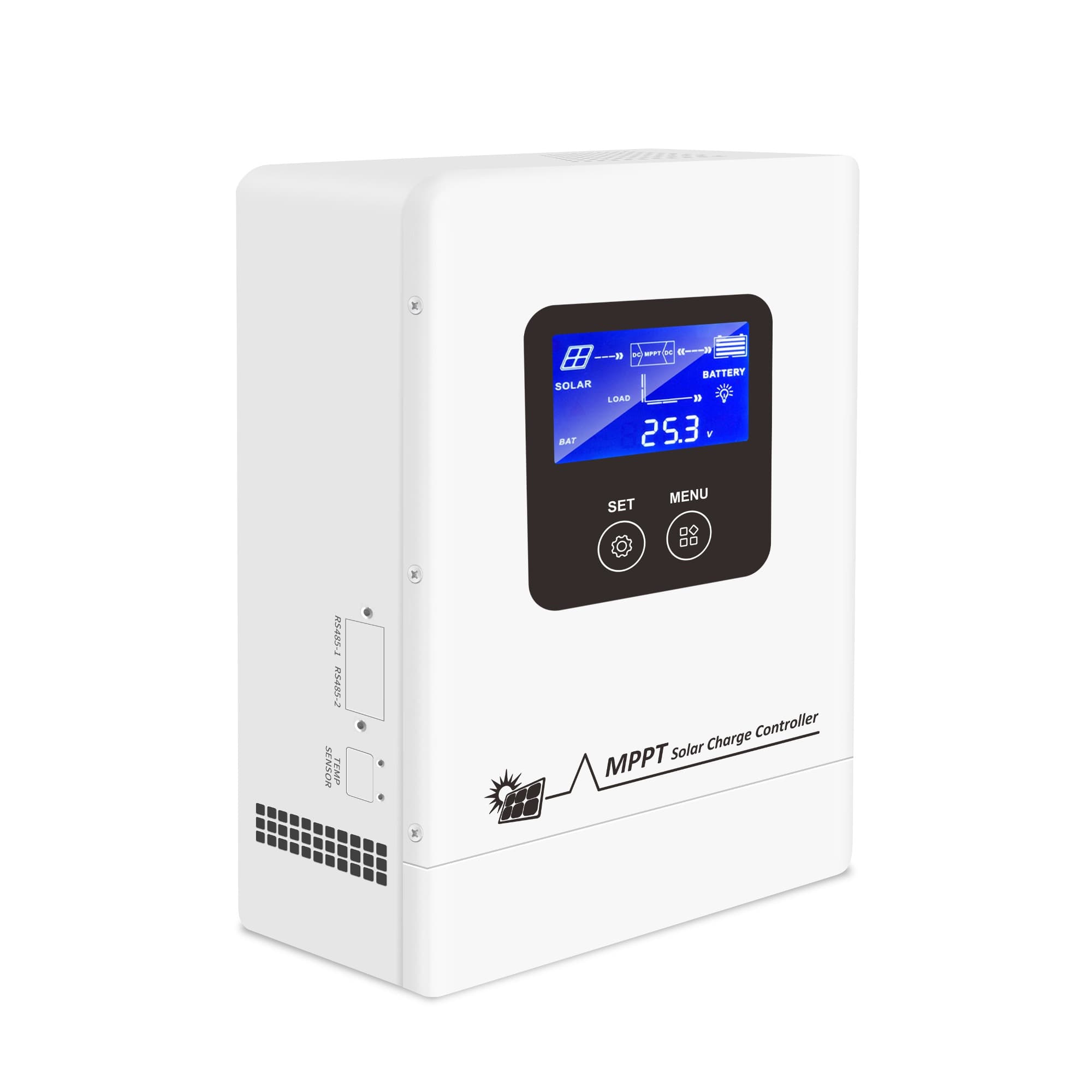

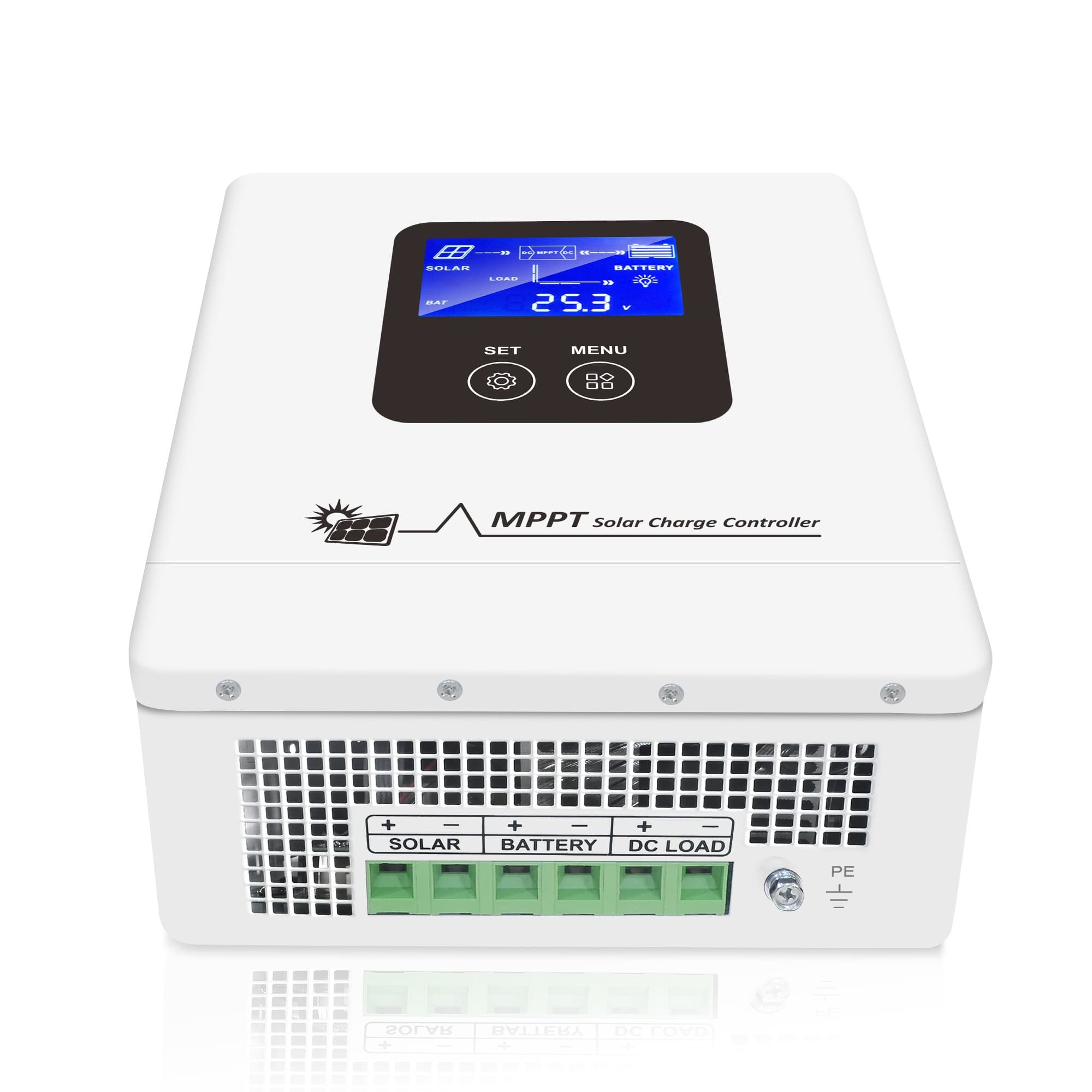

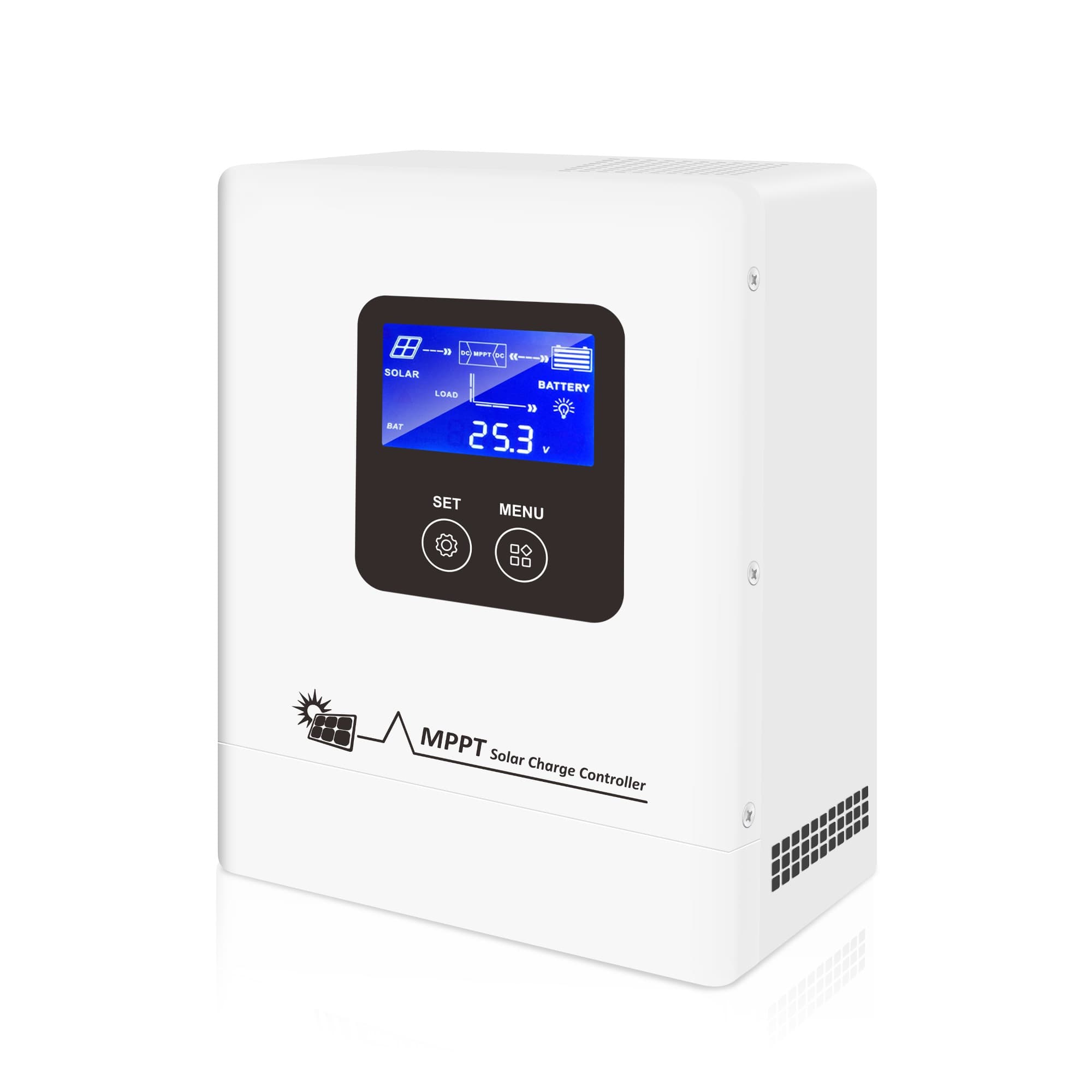

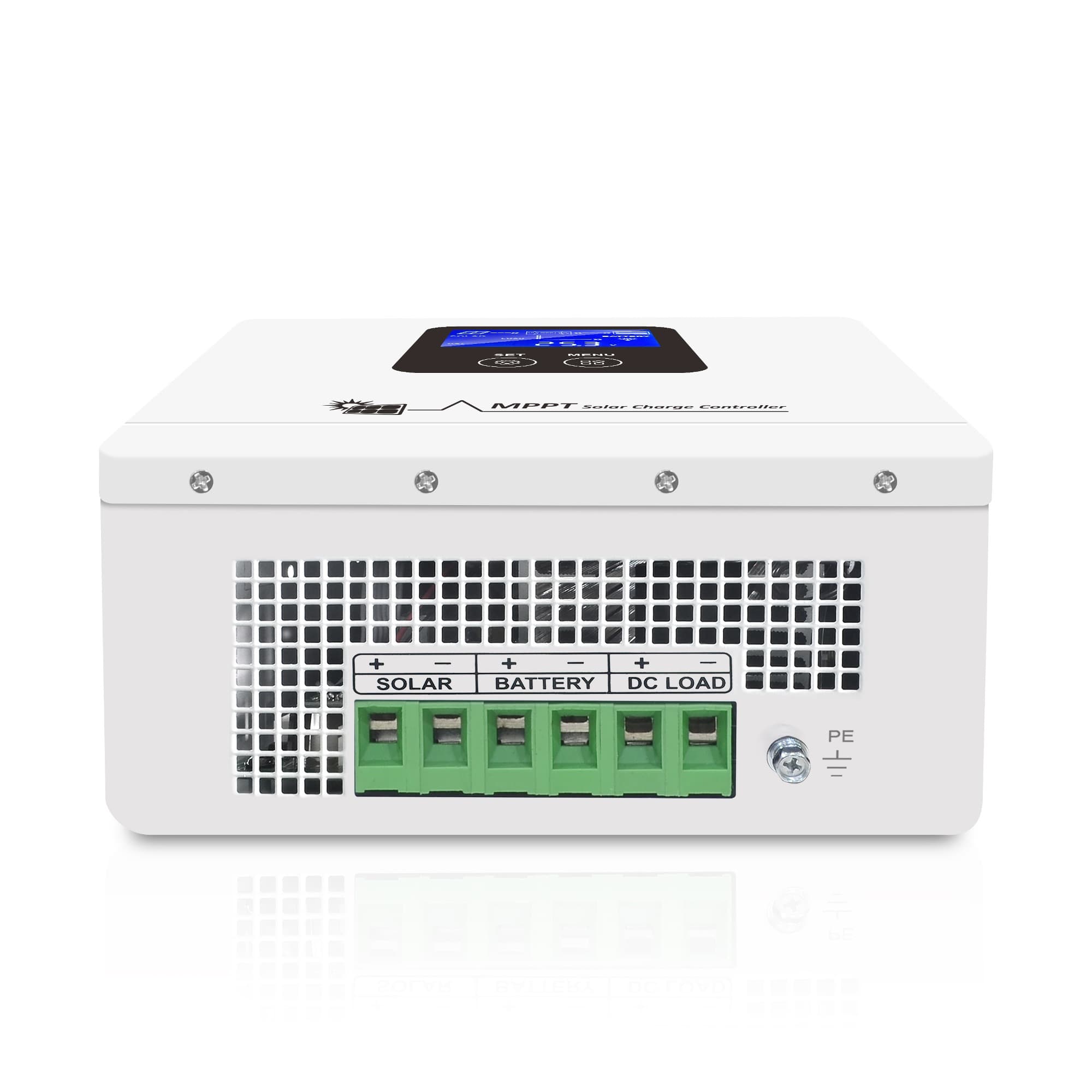

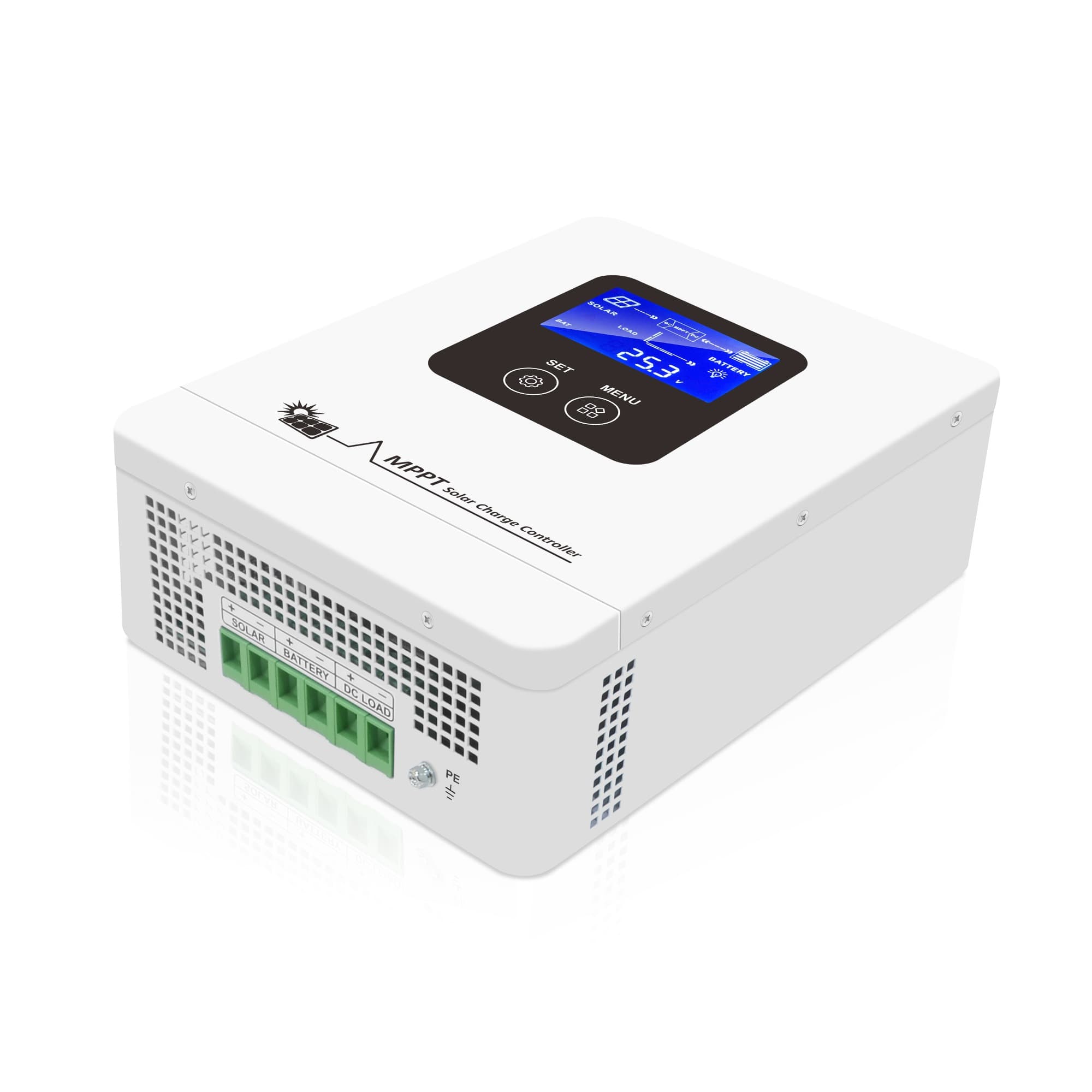

MPPT-wonder2-60A

Submit request Download PDF

    

Model:Wonder2	3812,0124,	88208	60124.,50124,	60485048,	80124,100124	8048,10048
Current/Voltage
Rated Curent	10AV20A/30A		40A/50A/60A		80A100A
Rated System volage	12V/24V	48V	12V/24V	48V	12V/24V	48V
PVInput
Max PV Input Voltage (Voc) (At The Lowest Temperature)	120V	180V	120V	180V	120V	180V
MPPT Tracking otage Range	12Vsystem(15V-80V);24V system(30V-100V);48Vsystem(60V-140V)
PVaray Max power	12Vsystem:140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24Vsystem:280W(10A)/560W(20A)/840W(30A)1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48Vsystem:560W(10A)1120W(20A)/1680W(30A)/2240W(40A)2800W(50A)3360W(60A)/4480W(8OA)/5600W(100A)
Battery
Battery Type	Lead acid battery/Lithium batery(Baterytype base on user charge specification)
Floating Charge Voltag	13.8V/Singlabattery(Lead aci battery)
Equalized Charge Volage	14.2V/Singla battery(Lead acid btery)
Charging Proteton olage	15V/Single battey(Lead acid battery)
Protection	Over-voltage/under-voltage/over-temperature/PV&Batery anti-reverse/DC output overcurrent protection etc.

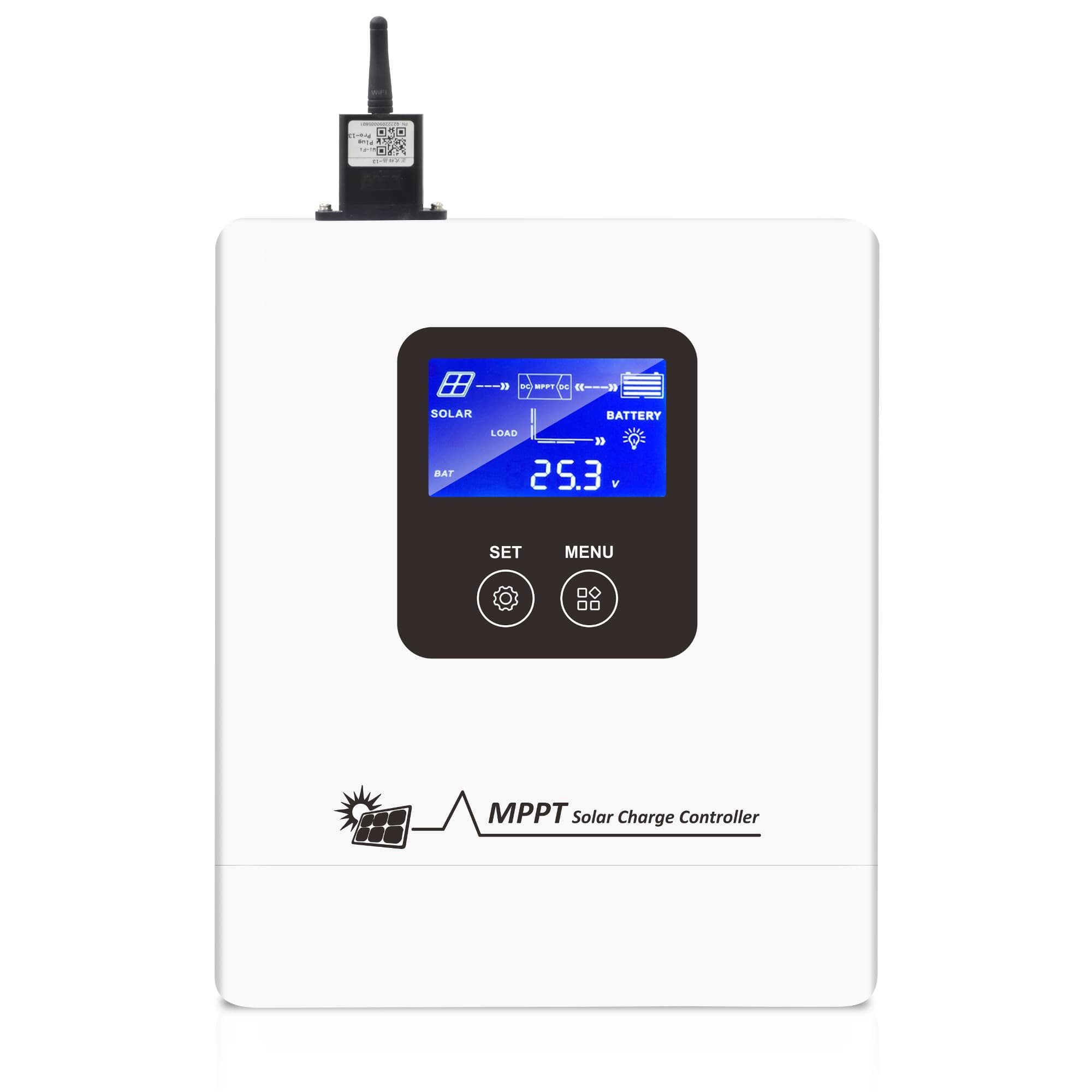

Communication	RS485/APP(WIFlo GPRS monitoring)
Actvate Litium BatteyFunction	Lithium battery can be activated automatically
Other
MPPT Tracking Eficiency	>99%
Display	LCD
Protection Degree	IP20
Coling Method	Cooling fan n inteligent control
Operating Temperature	-15℃-50℃
Elevation	2000m(more than derating)
Relative Humidity	5-95%(No condensation)
Dimensions and Weight
Machine Size(L’W²Hmm)	214*155’72.8		23818082		315210106.5
Package Size(L-WHmm)	243184115(1pc) 497379247(8pcs)		267209124(1pc) 639278265(6pcs)		344239149(1pc) 489355315(4pcs)
N.W. (Kkg)	1.6		2.4		4.2
G.W. (ks)	1.8		2.7		4.6
